Applications

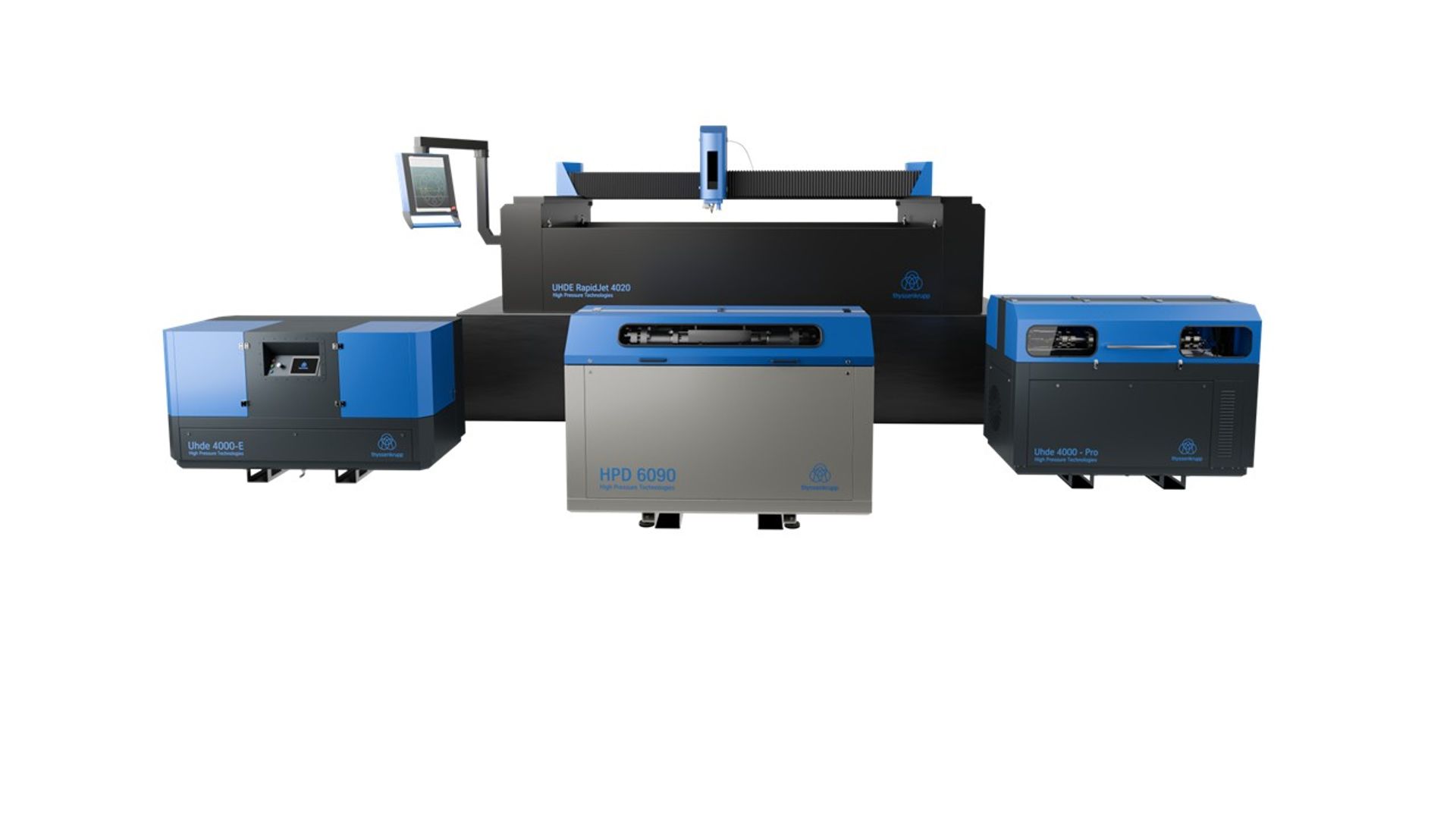

Why Uhde High Pressure Technologies Waterjet Solutions?
OUR PRODUCTS IN DETAIL

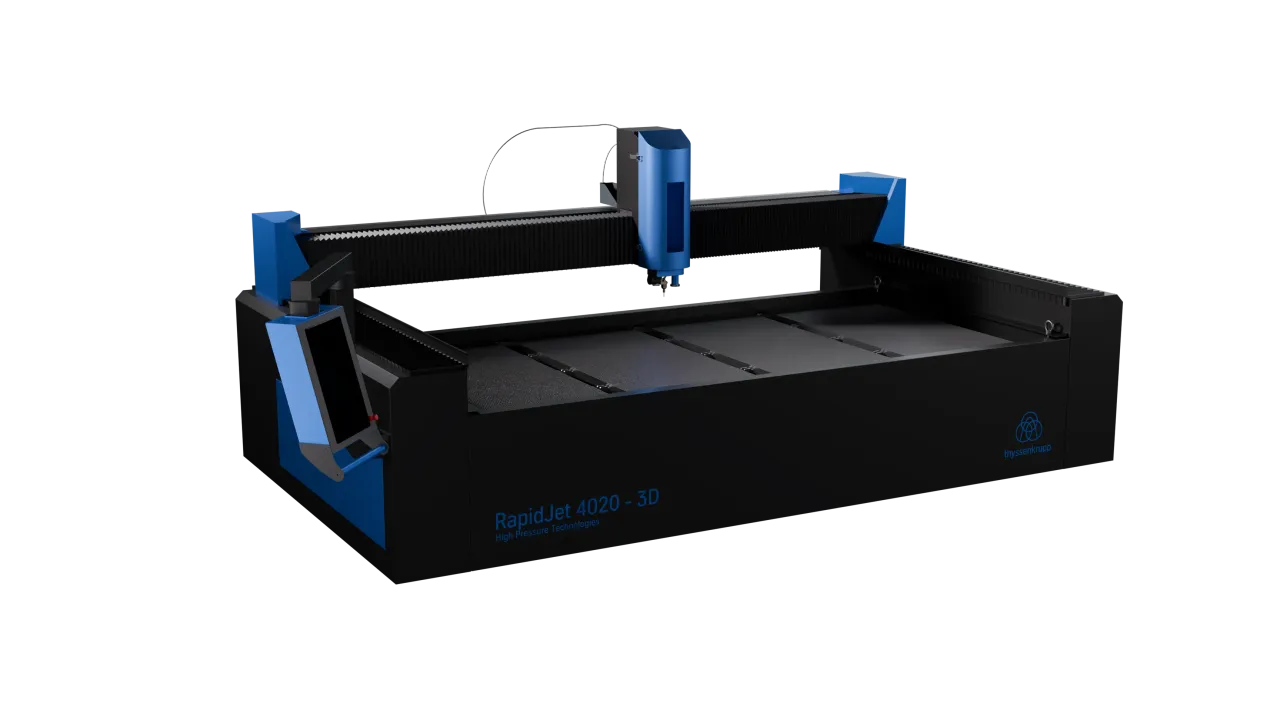

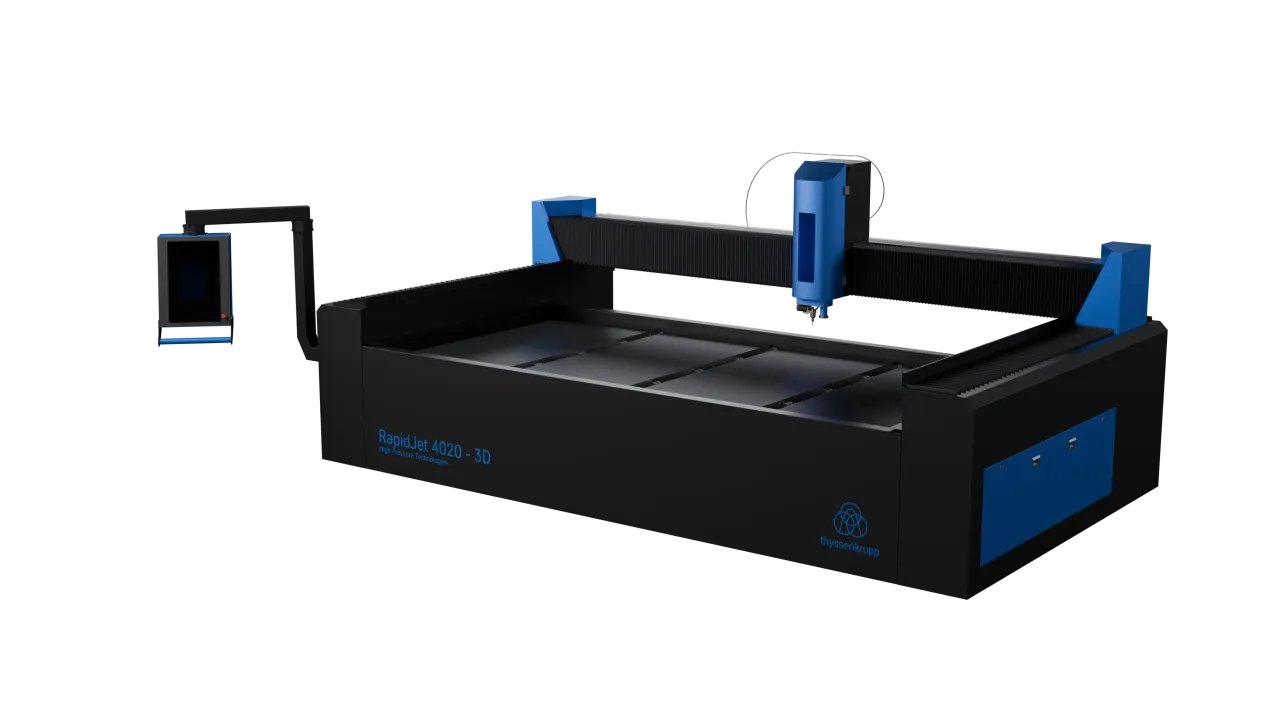

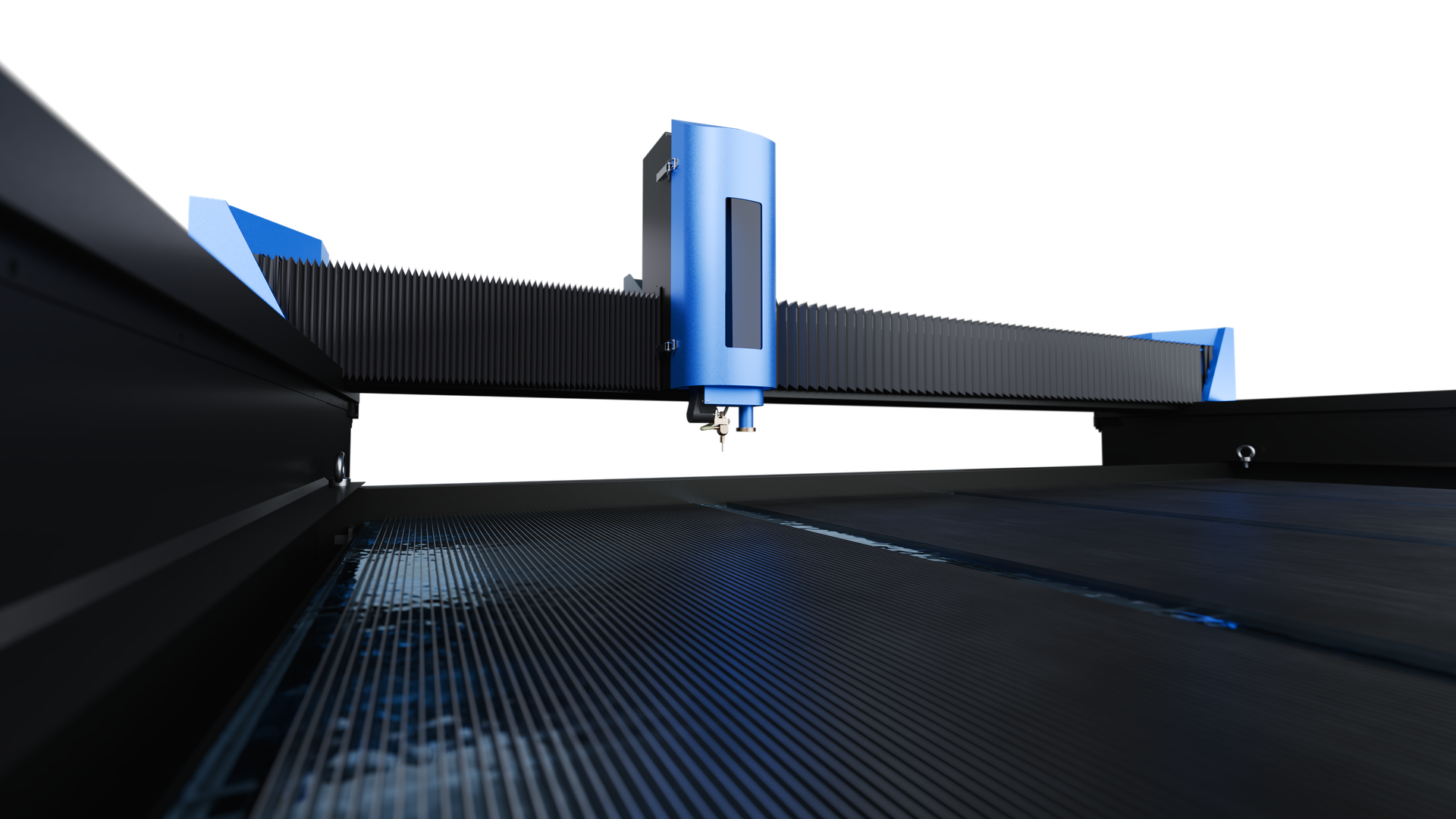

RapidJet
Waterjet cutting systems combined with proven Uhde high-pressure pumps developed and manufactured in Germany. RapidJet stands for maximum precision, stable processes and outstanding flexibility when processing a wide range of materials without any thermal impact.
Available sizes:
3,000 x 1,500 mm
3,000 x 2,000 mm
4,000 x 1,500 mm
4,000 x 2,000 mm
AddAdditional sizes available on request
All sizes available in 2D or 3D configuration (3D version: travel range reduced by 300 mm in X and Y direction)
Load capacity: 2 t/m²
Z-axis height: 250 mm
Travel speed: 30 m/min
Color: Anthracite RAL 7017, Sky Blue RAL 5015

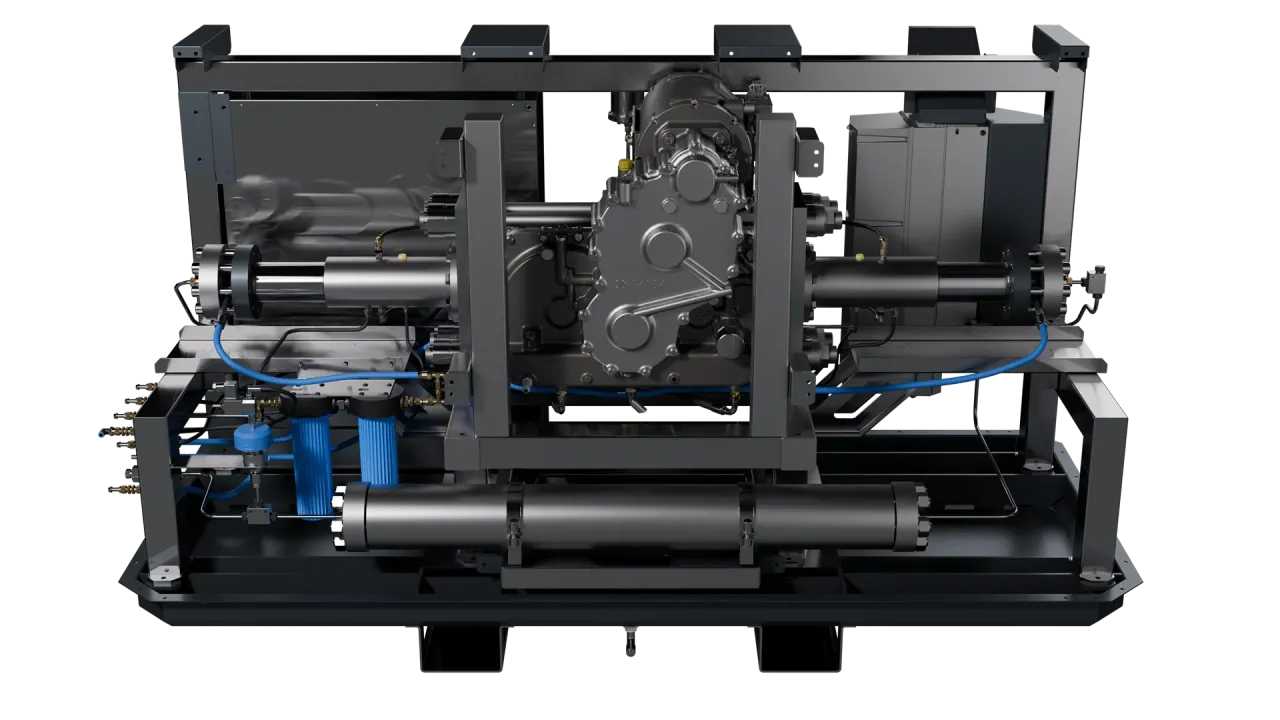

Uhde 4000-E
The Uhde 4000-E sets new standards in ultra-high-pressure technology: As a newly developed electromechanical pump, it operates completely without hydraulics and delivers outstanding energy efficiency.

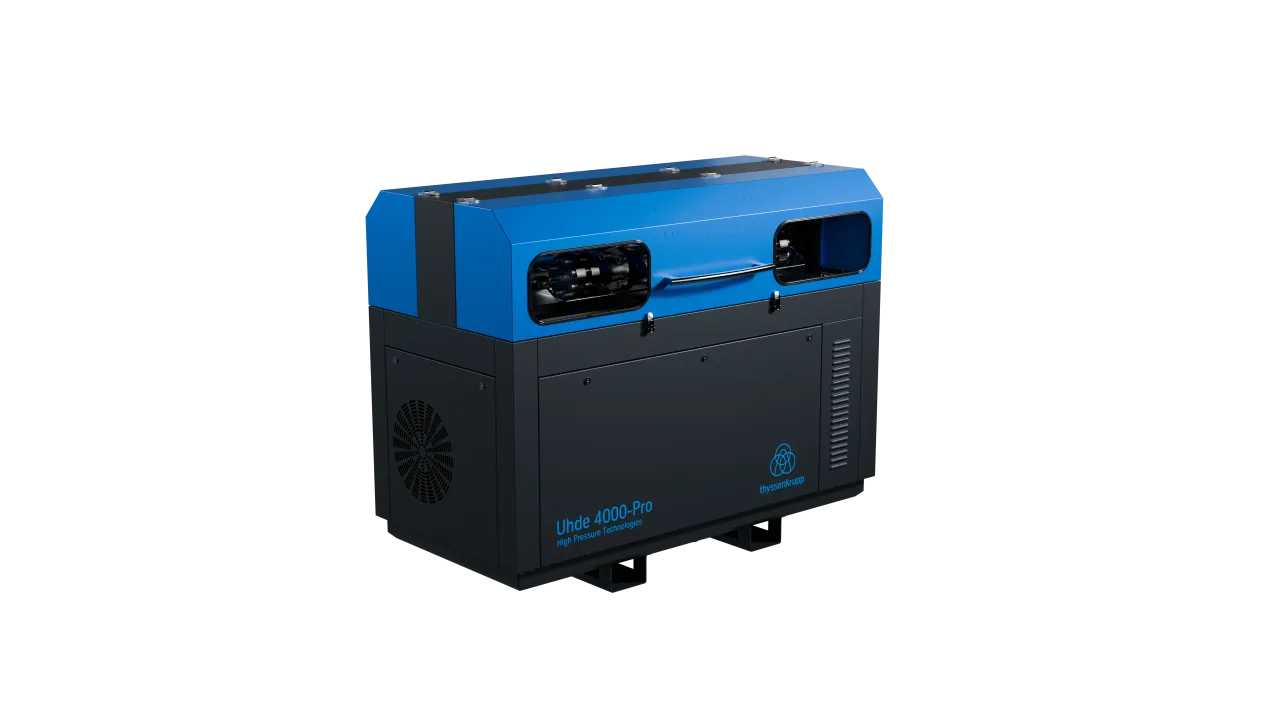

Uhde 4000-Pro

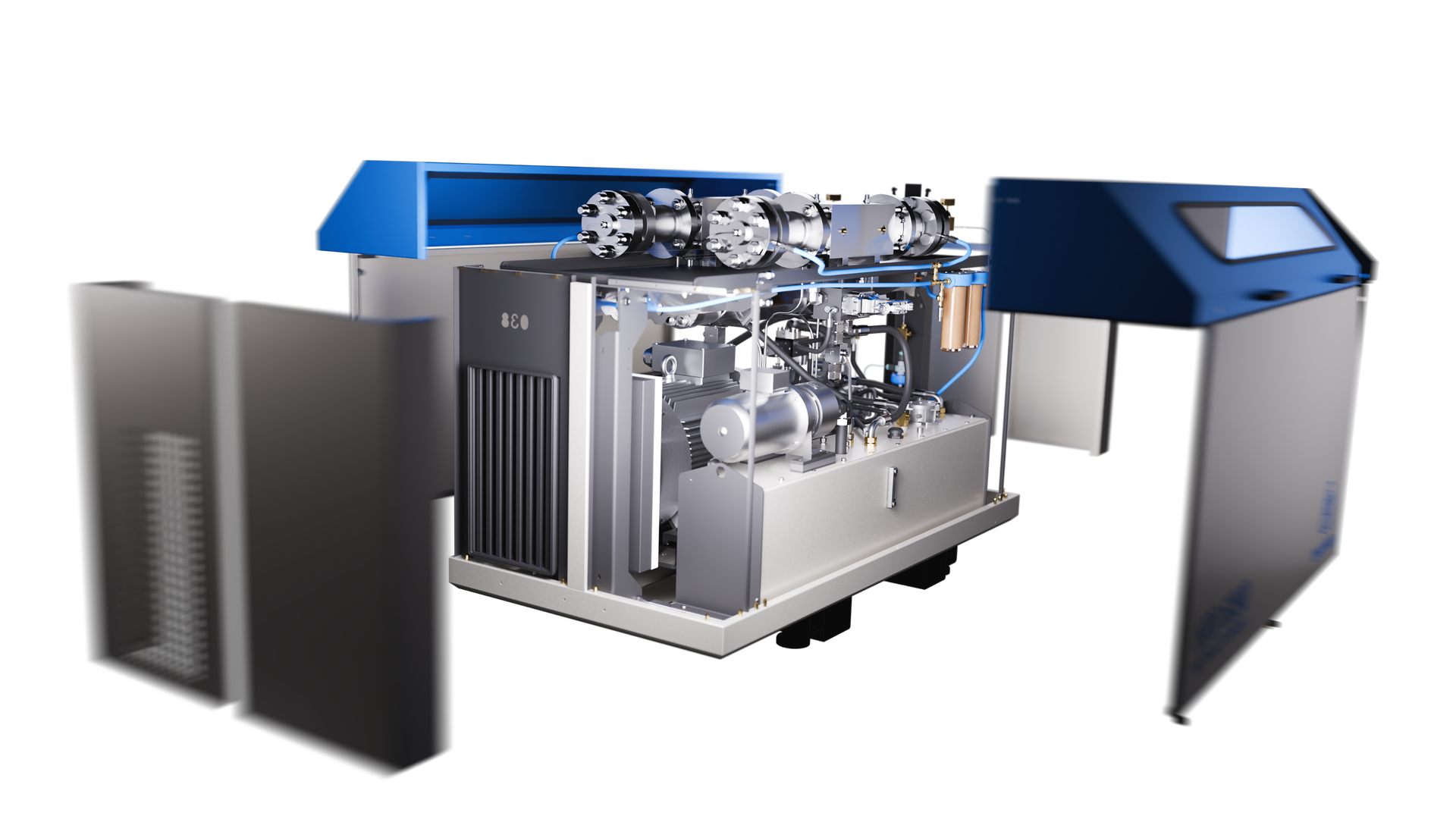

The Uhde 4000-Pro represents powerful and durable ultra-high-pressure technology based on proven intensifier pump design. Its long-stroke configuration ensures an exceptionally stable pressure signal and outstanding service life.
Operating pressure for all models: 380 MPa.

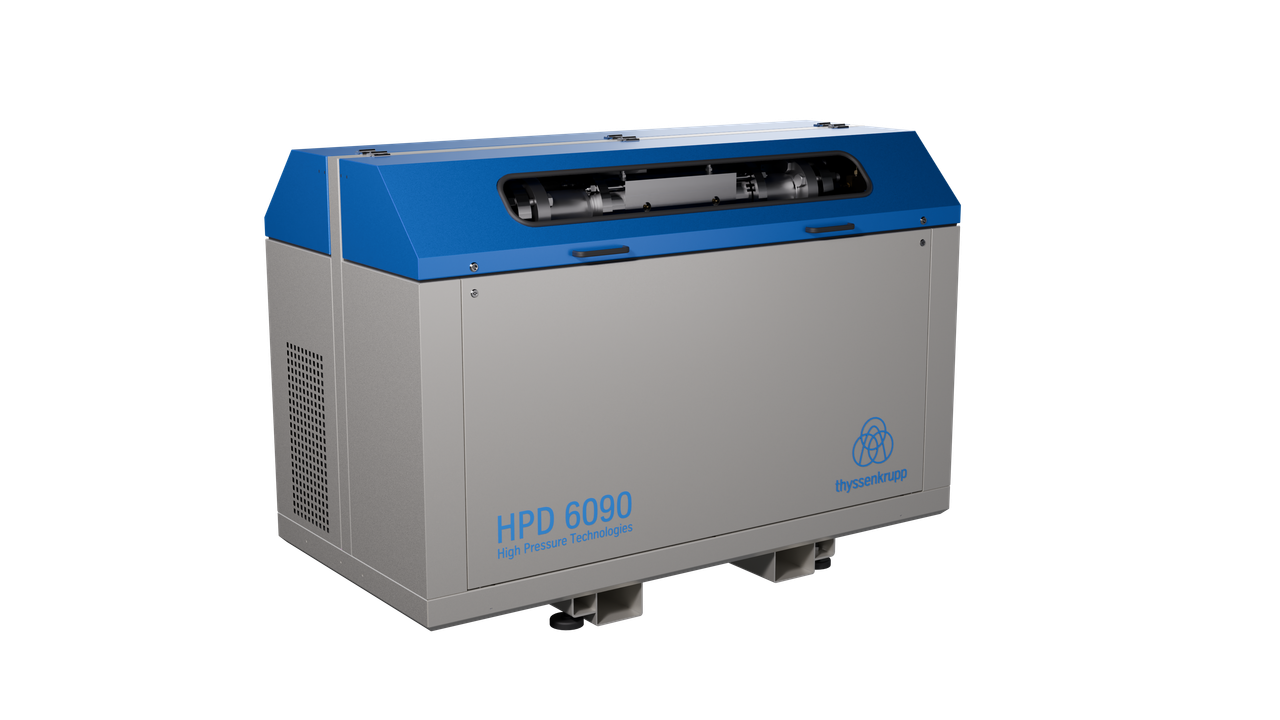

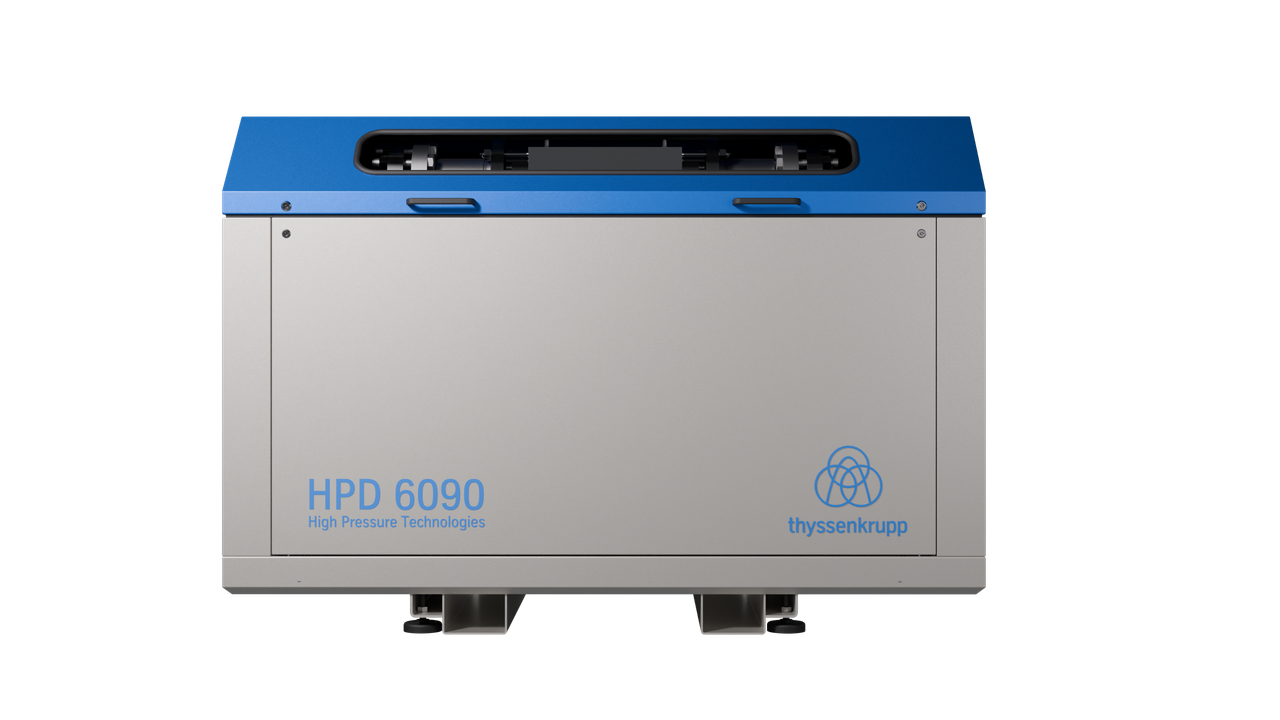

Uhde 6000
The Uhde 6000 represents maximum performance in ultra-high-pressure technology. Designed for applications with the highest demands on cutting speed, precision and material versatility, the high-pressure pump generates pressures of up to 6,000 bar — enabling waterjet cutting at the highest industrial level. Based on decades of experience in high-pressure technology, the Uhde 6000 combines maximum pressure stability, robust construction and outstanding process reliability.
* = Standby HD unit available ** = Tolerance +/- 3 dB(A) *** = Others available on request *** = Excluding hydraulic oil and optional equipment **** = 4.0 l/min @ 3,800 bar

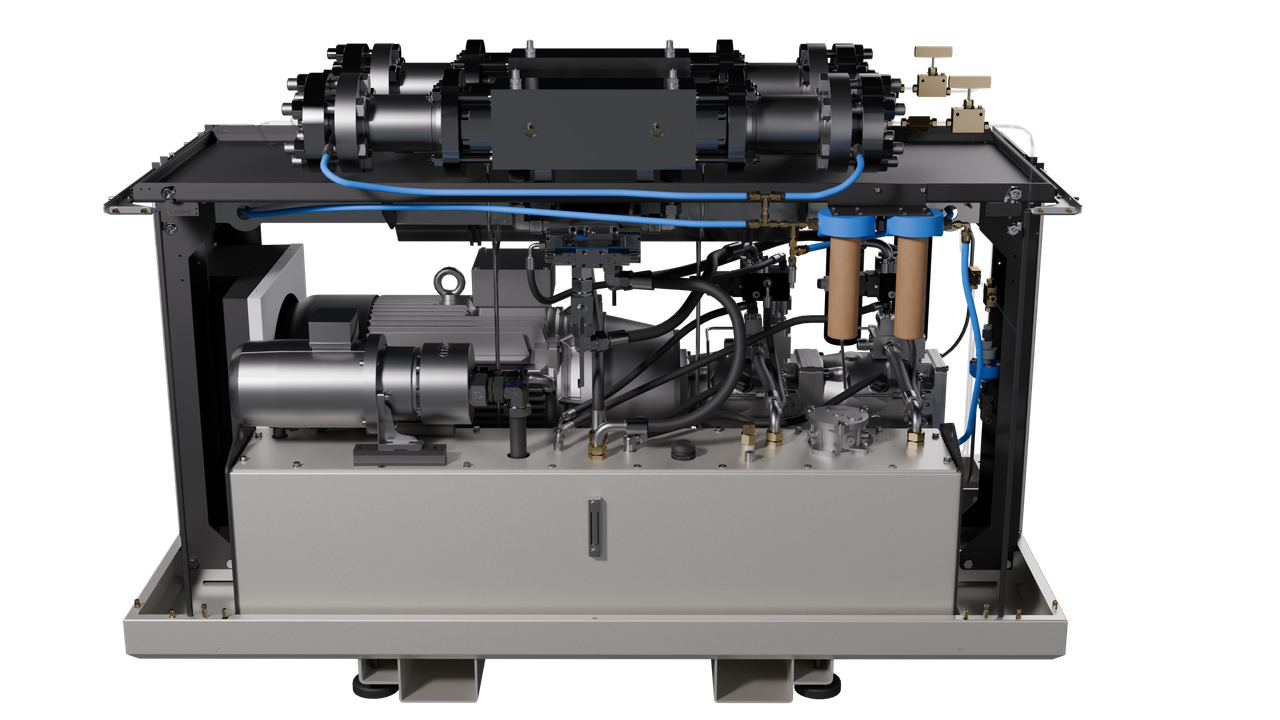

Uhde 6000: Engineered for maximum cutting performance
The combination of powerful high-pressure technology and precise control systems ensures consistently high cutting quality — even with demanding materials and large material thicknesses. Thanks to the extremely high exit velocity of the abrasive waterjet, even complex contours can be processed efficiently and reliably.
