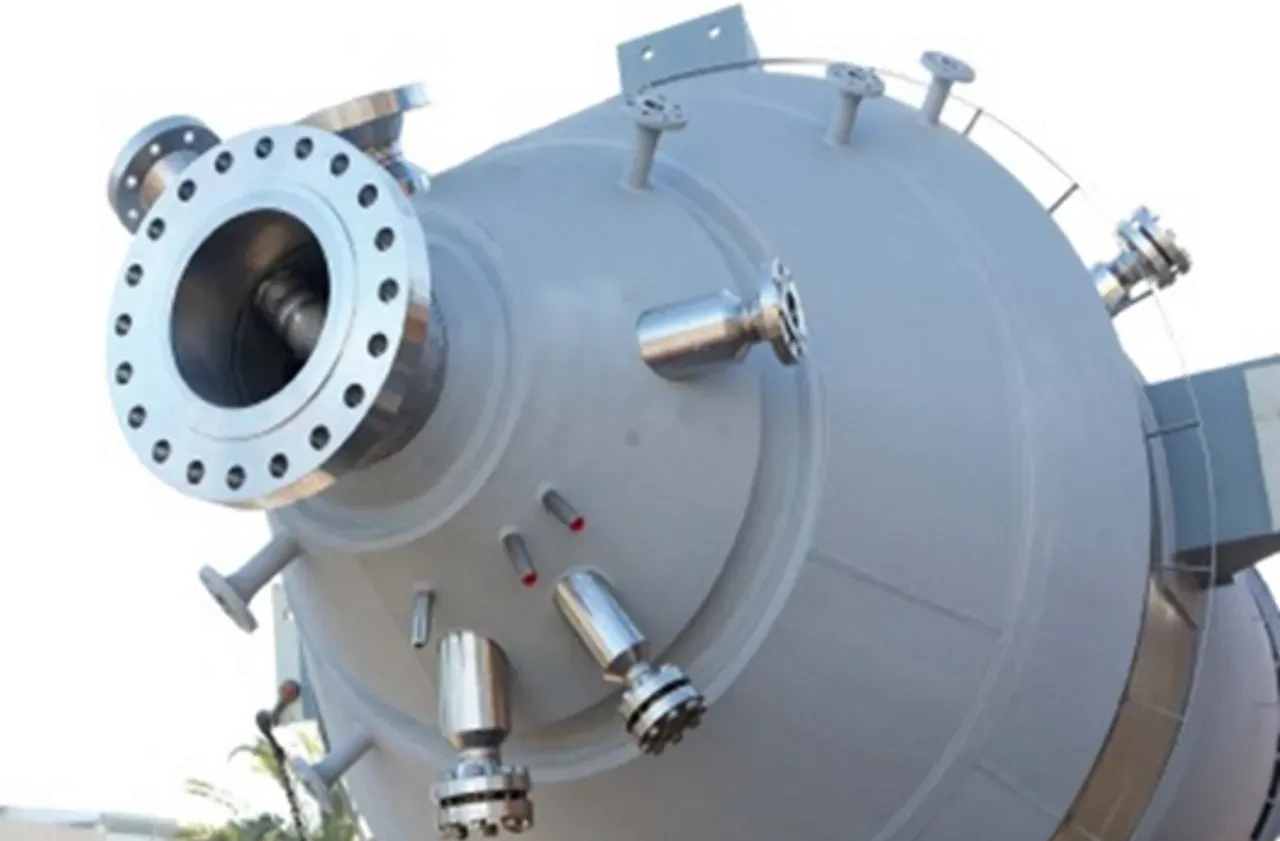

Jet Reactor Technology
Jet Reactor: the heart of thyssenkrupp's technology
Jet Reactor: the heart of thyssenkrupp's technology
Our licensed technologies, whether full process plants or key equipment, can be found in installations around the world. Our proprietary equipment is engineered to last, underpinning our continual commitment to performance and quality. We continuously improve our designs through feedback from executed projects, technical service, vendors and fabricators, and our own research and development center in Thailand. This ensures that each client receives maximum value for their investment.
Superior Technology
Superior Technology

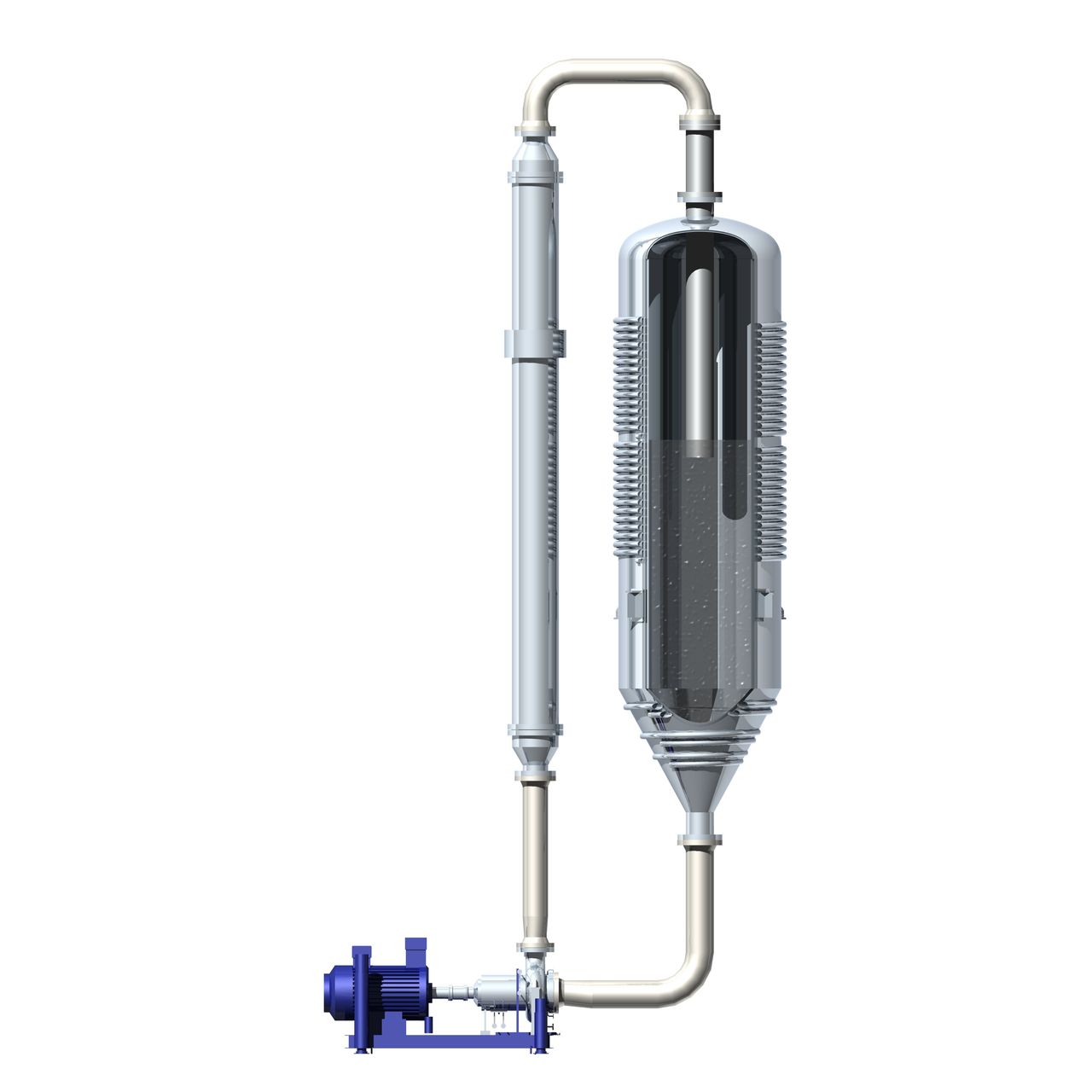

The tkIS jet reactor technology offers the best in Safety, Performance, Automation and Flexibility:
Inherent Safer Design concept is an intrinsic part of tkIS technology
The most effective gas-liquid, liquid-liquid and liquid-solid mixing
Highest mass & energy transfer
High growth ratios for alkoxylation reactions
Multiple layers of basic and advanced process control, and safety instrumented systems
Proprietary batch sequence control and recipes
Jet Mixing and Scale Up
Jet Mixing and Scale Up
superfine bubble flow at Jet Mixer outlet
The flow regime inside the Jet Mixer and its draft tube is a superfine bubble flow resulting in a large interfacial area and thus very high mass and energy transfer rates (mixing intensity).
This flow regime can be easily maintained throughout scale-up since the critical system parameters are functionally separated into pump, heat exchanger and Jet Mixer, which all scale linearly with batch size.
Hence, recipe steps are directly transferable from the pilot plant to the industrial reactor.

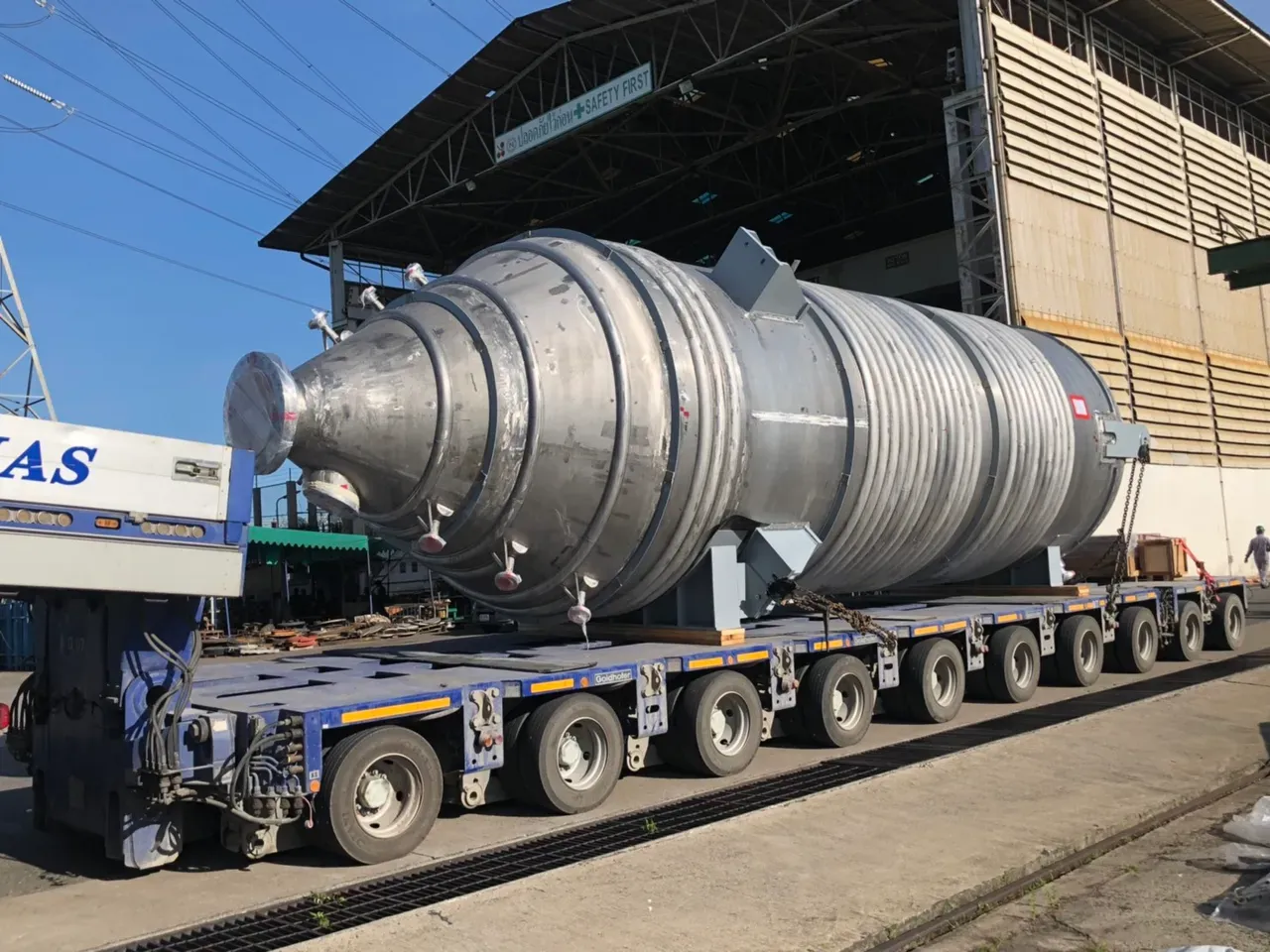

Detailed Engineering Expertise
Detailed Engineering Expertise
Our proprietary and special equipment is recognized as a global industry standard, and is produced by certified vendors and suppliers. The manufacturing processes used by our fabricators comply with applicable European, US or other design codes as well as more stringent thyssenkrupp internal quality requirements.
The process subjects equipment to cyclic variations in pressure and temperature. To ensure equipment performance over the life of the plant, our designs are verified using Finite Element Analysis to confirm their robustness and fitness for service.
