Preassembled Modular Plants
thyssenkrupp’s modular concept provides unparalleled flexibility and optionality to our clients as it greatly facilitates subsequent revamps whether for capacity growth, for new products or recipes, to meet ever more stringent quality requirements, or to improve energy consumption.
We have gathered very considerable experience in the design, construction and delivery of pre-assembled modular plants. Today, we supply plants from pilot plant size to large industrial production plants, with annual single train capacities in excess of 200,000 MTPY in pre-assembled modular form.
For more details on our modular experience, please click here

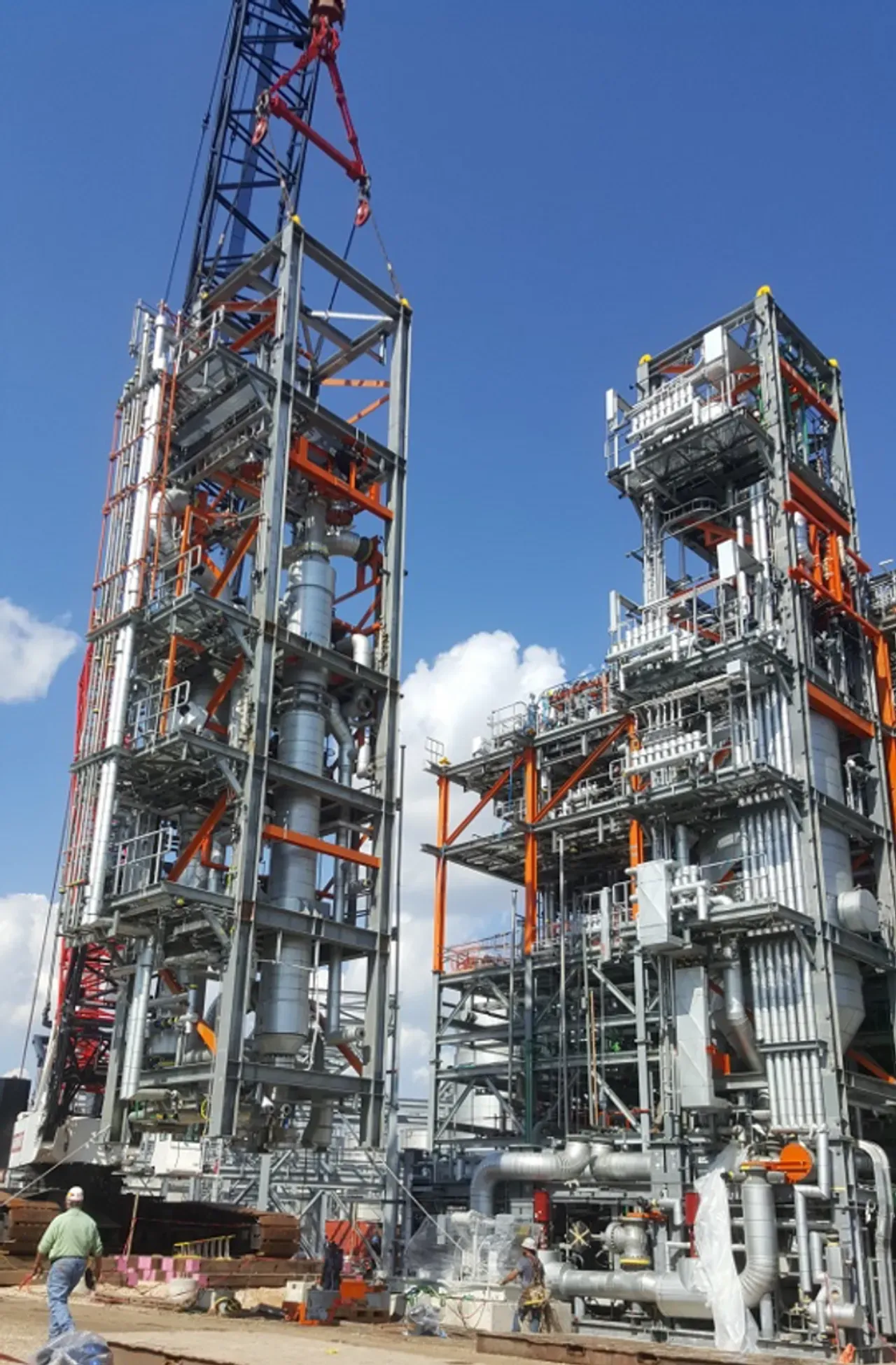

Advantages of Modular Delivery
Advantages of Modular Delivery
The erection and installation of all plant components in a free standing steel structure is carried out under optimal conditions and with minimal impact on the adjacent facilities.
The modular plant design effectively manages the risk of uncertainties in the overall delivery of the project.
Advantages of pre-assembled modular plants are significant risk mitigation in all key areas of project delivery:
Improved safety. Construction work in a controlled and expert managed environment
Shorter construction time due to higher productivity
Minimum site construction hours and minimal impact on ongoing operations
High quality
Project management with one interface point
Clearly defined battery limits
Price certainty

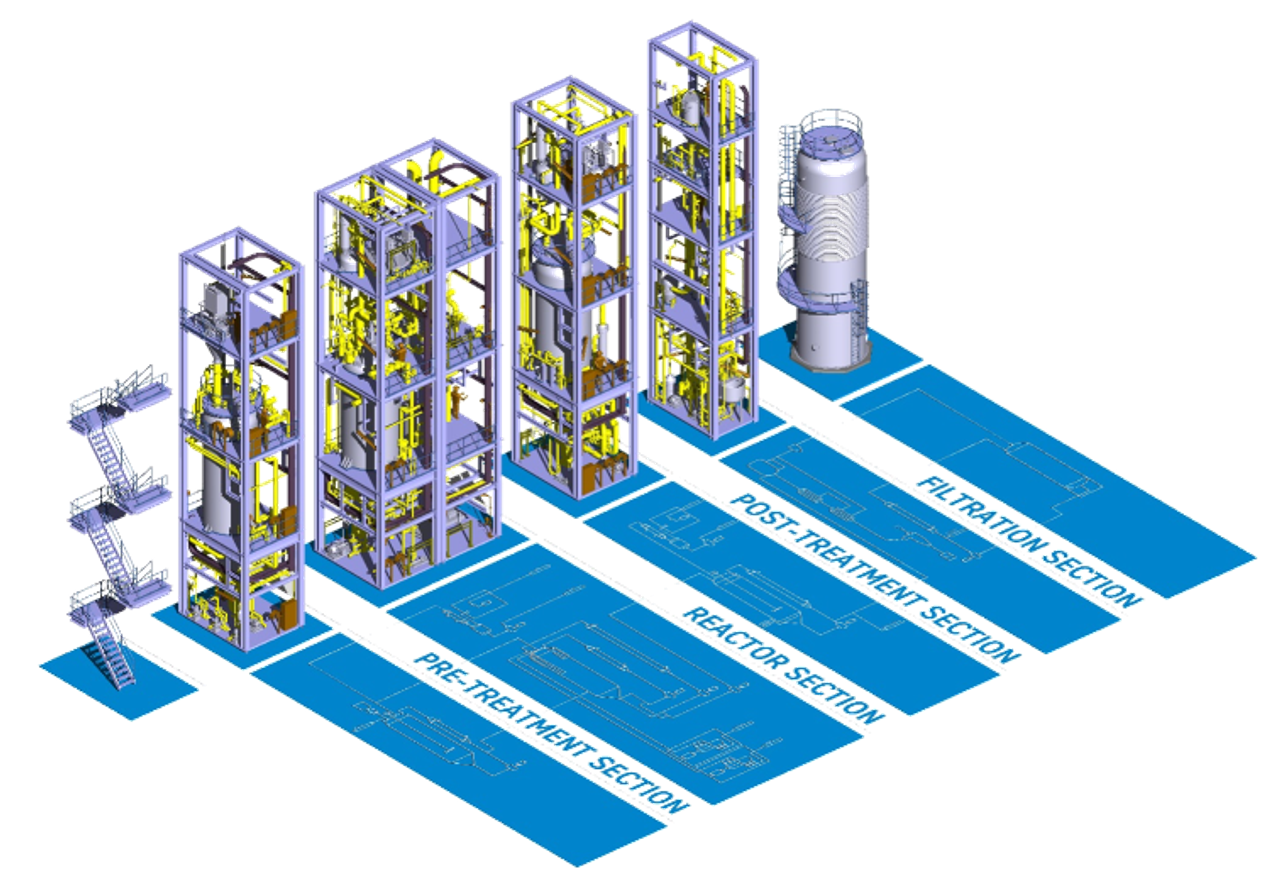

Modular plant concept
Modular plant concept
Standardised modular designs for a number of batch capacities are available, which can be tailored to specific site, market or client requirements. The plants typically consist of the following sections:
Pre-Treatment
Jet Reactor
Post-Treatment
Filtration
We also provide standard modular designs for offsite and utility systems.

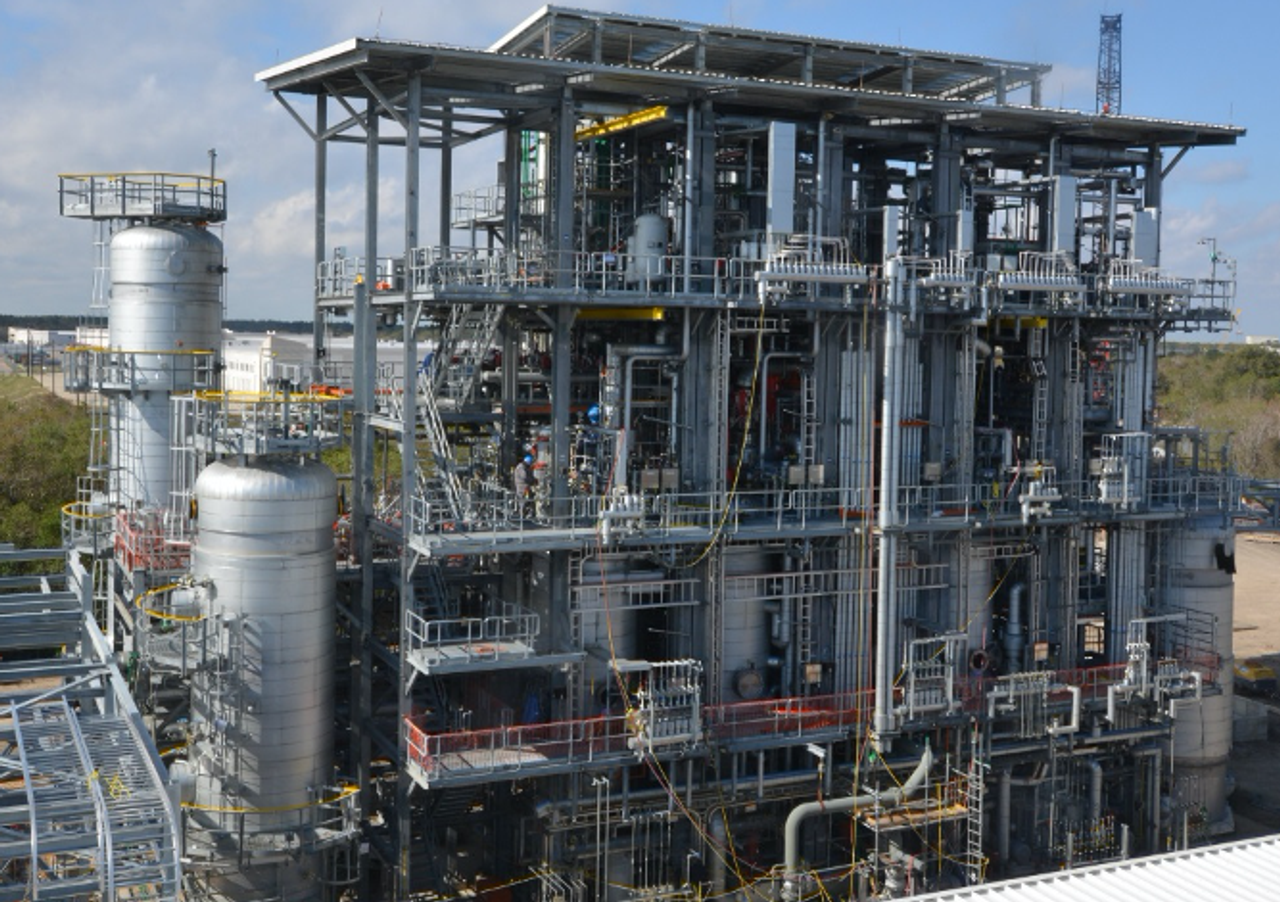

Flexibility
Flexibility
The modular design concept facilitates a stage-wise investment approach which can provide significant benefits to the client in terms of lower initial investment and improved project returns. This may be especially useful in markets which are growing rapidly, or where there is high potential for adding new product lines to the portfolio.
Furthermore, optional units can be retrofitted, such as a high growth loop, solid dosing units, heat recovery units and others.
